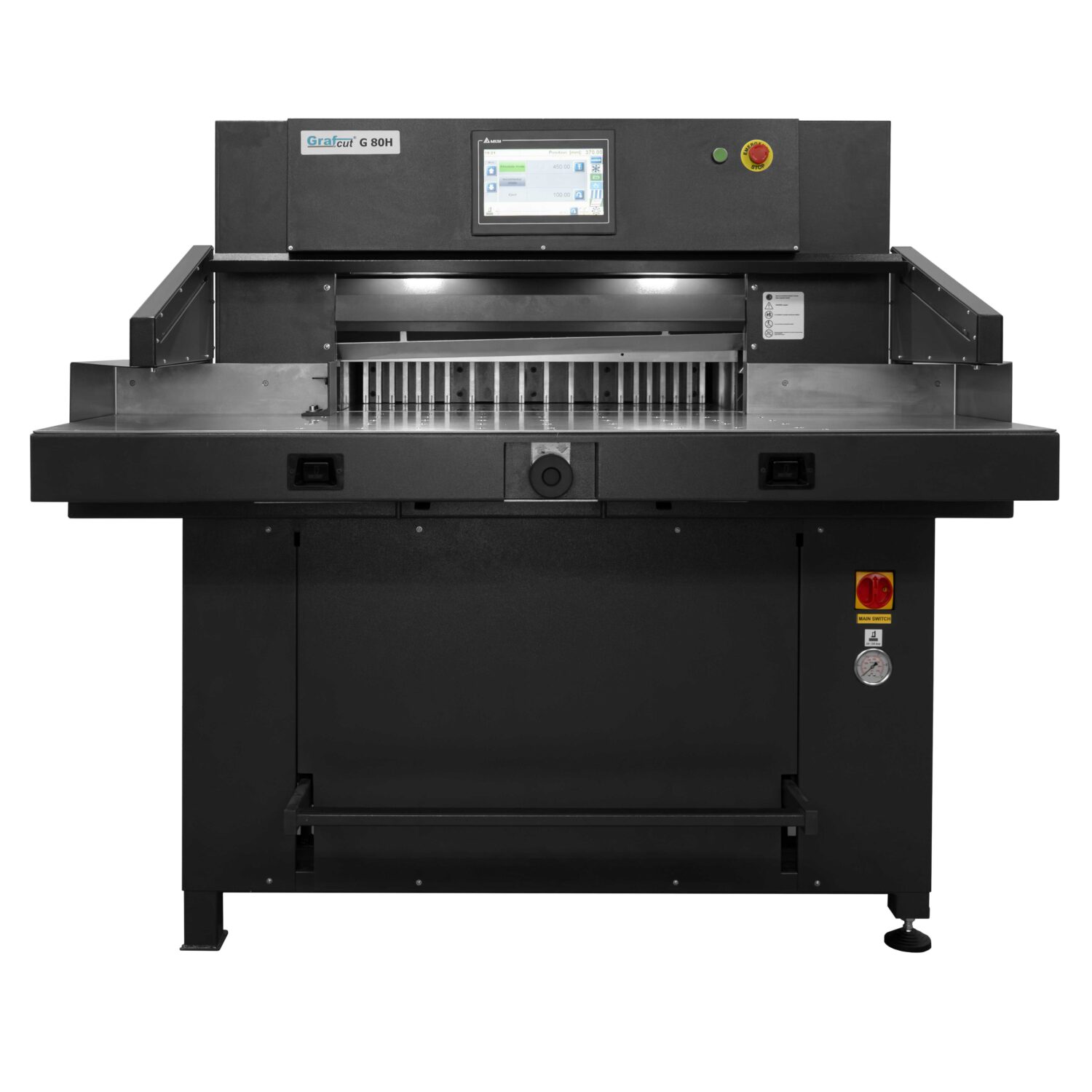

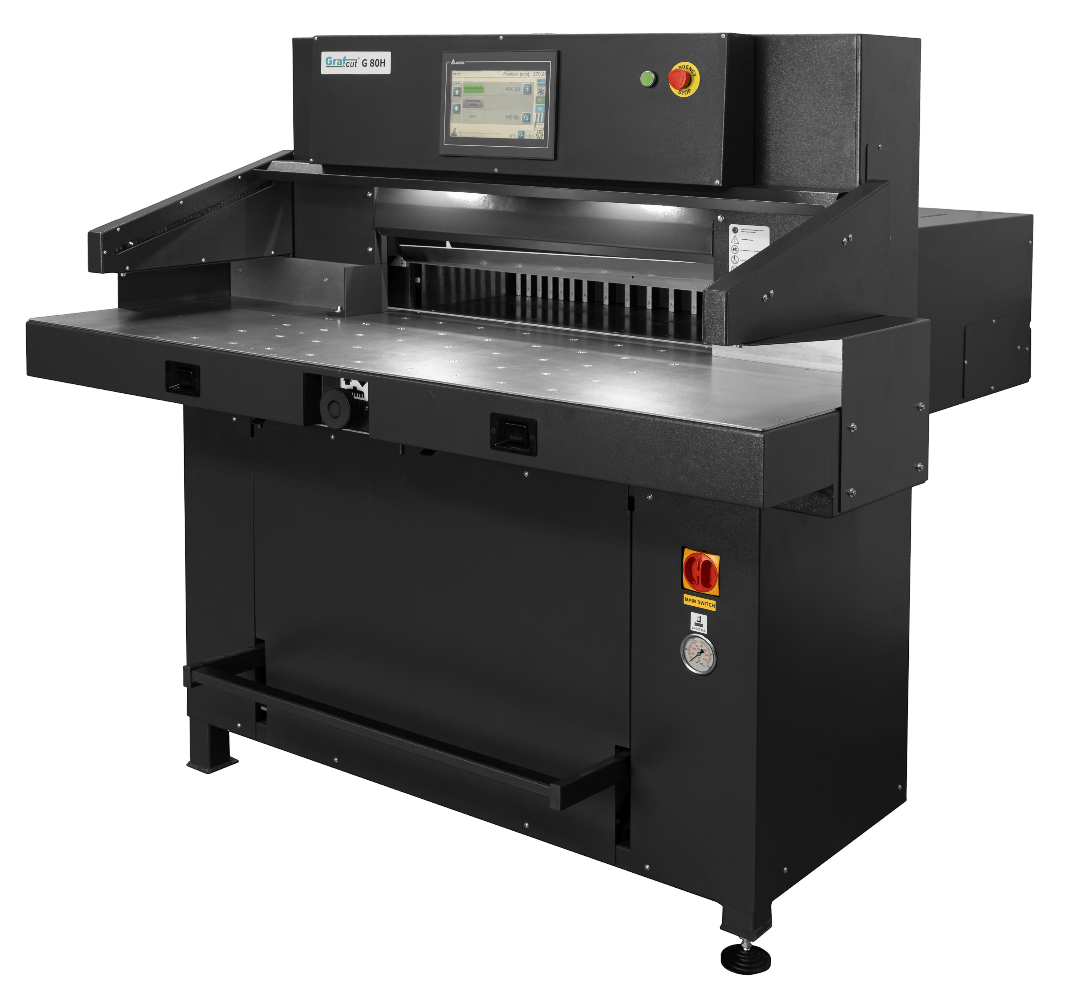

Grafcut 80H Guillotine

The Grafcut 80H Guillotine is a fully hydraulic, heavy-duty 80 cm paper cutter designed for single-shift operation in digital and offset printing houses. Especially recommended for operations processing a wide variety of materials, requiring smooth and precise clamp pressure adjustment, or running intensive daily production.

Compared to previous models, this machine offers:

Increased knife length and cutting depth
Optimized cutting and clamping cycle (20% faster than its predecessor)
100% faster back gauge movement verus previous cutters thanks to a new-generation lead screw and servomotor

The result is higher productivity, improved cutting precision, and reliable performance under demanding production conditions.

PLC-controlled guillotine
Fully hydraulic knife drive
Hydraulic clamp mechanism with electronic, stepless pressure adjustment via touchscreen
High-speed electromechanical back gauge driven by servomotor (up to 160 mm/s)
Precise electronic micro-adjustment of back gauge via control knob
Durable stainless steel table surfaces
Extra-wide front table (1640 mm)

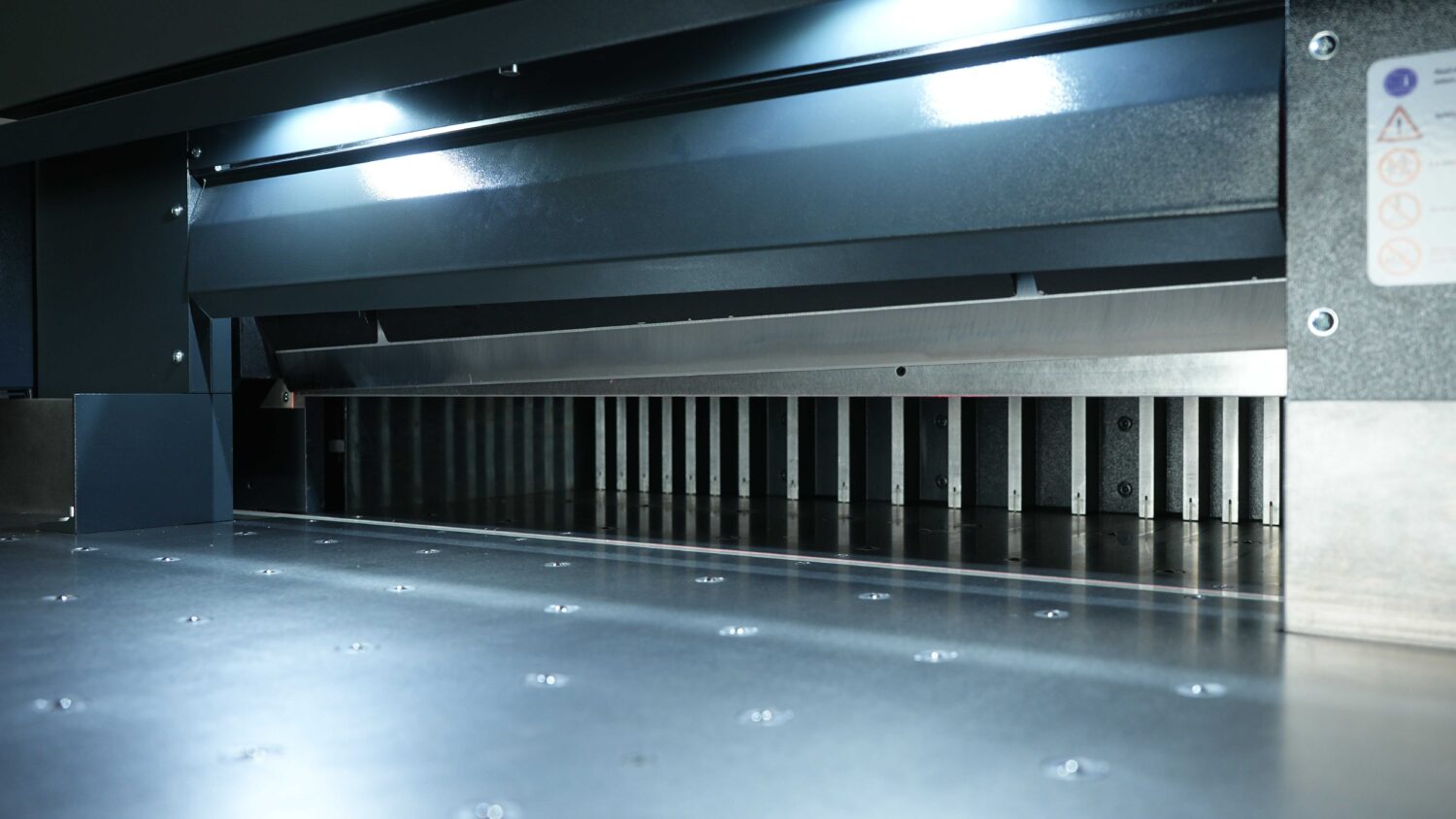

Air table (front and rear) for effortless material handling
No slot in the rear table for improved stability
Laser cutting line indicator with ON/OFF function
Bright LED illumination of the working area

Advanced Safety System

Emergency stop button on front panel
Category 4 safety light curtain
Knife upper position monitoring
Two-hand cutting cycle activation
Safe blade change toolkit with cutting edge protection
Protective covers on all potentially hazardous areas
Fully enclosed rear table
Mechanically controlled soft foot pedal for pre-clamping
Electronically detected (micro switch) false clamp plate for soft materials

Operational Efficiency

Low energy consumption and quiet operation – motor runs only during the cutting cycle
Easy access to lubrication points for simplified maintenance

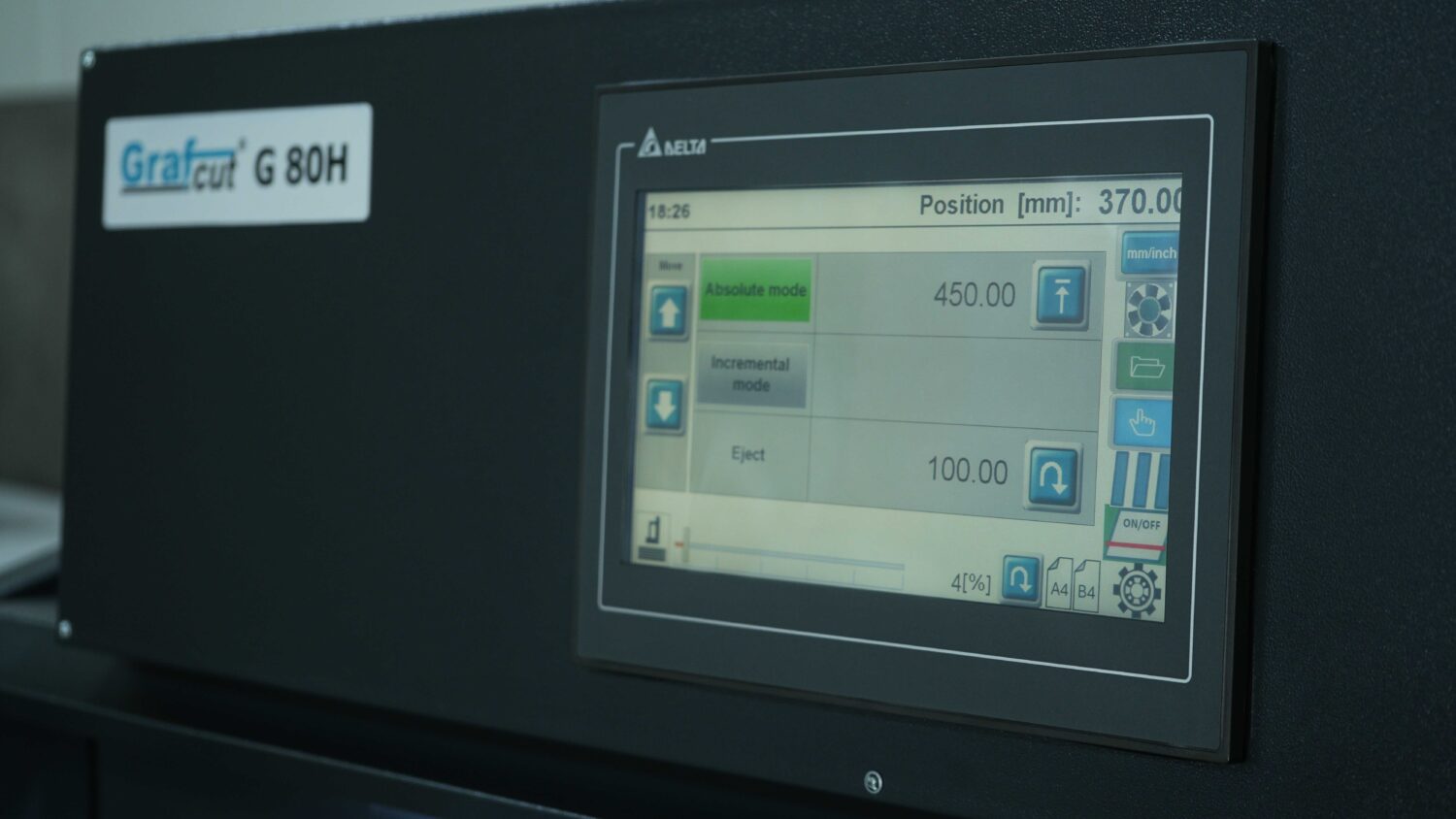

10” color LCD touchscreen
Up to 100 programs, each with up to 100 cutting steps
Alphanumeric program naming
Programming during cutting (“Cut & Save” function)
Quick program for business card cutting
Integrated calculator
Clock
Programmable clamp pressure for each individual cut
Air table activation via touchscreen
Knife change mode activation via touchscreen
Programmable stock push-out (ejection) from under knife and clamp
Adjustable knife change interval alert
Lubrication interval alert
Multilingual interface: Polish, English, German, Italian, French, Spanish, Portuguese, Finnish, Bulgarian, Russian (additional languages available upon request)
Daily and total cutting cycle counter
Diagnostic mode for switch testing

Grafcut 80H Guillotine – Technical Specification

Cutting width	800 mm (31,5”)
Cutting depth	800 mm (31,5”)
Cutting height	100 mm (3,93”) without false clamp installed
Narrow cut	25mm without false clamp (50mm with false clamp)
Front table length	650 mm
Front table width	1640 mm
Cutting accuracy	0,1 mm
Knife drive	Hydraulic
Knife depth adjustment	Depth adjustment at front of cutter by 3 bolts on top of knife beam. Fast knife changing (about 5 min.) with automatic shut off in lower dead end.
Knife and clamp speed	16 cycles/minute
Clamp	Hydraulic with fluent electronic adjustment from the screen Clamp force range 300 – 2000 daN
Backguage speed	Servomotor driven- electronically adjusted position by front panel electronic crank Backgauge speed 160 mm/sec
Net weight (kg)	Approx. 900 kg
Dimensions (mm)	Width x depth x height: 1,645 x 1,900 x 1,500 mm
Power Supply	Power supply : 3 phase
