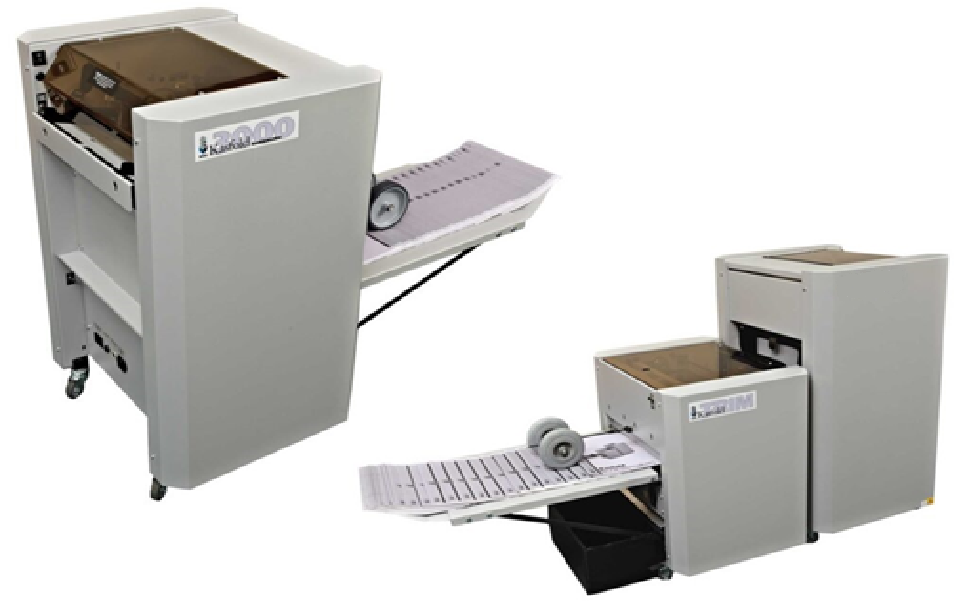

The Kasfold 3000 booklet maker is a robustly engineered bookletmaker with the capabilty to produce booklets from A3 – A4 , A4 – A5 and A5 – A6

The machine is compact and mobile,  the folding delivery conveyor allows for neat storage when not in use.The four position, heavy duty staple heads allow excellent flexibilty in booklet size production
Production speeds of up to 1500 booklets per hour, with up to 25 sheets per book make the Kasfold 3000 a valuable addition to any finishing department

Double edge jogging, together with Kasfold’s renowned rugged construction ensure accurate folding. stapling and delivery of finished booklets.

The Kasfold 3000 booklet maker can be linked to most makes of desktop collating machines and is available with an online front edge trimmer, allowing fully automated booklet production.

KASFOLD 3000 Modular Booklet Maker

KASFOLD Booklet Makers are designed to meet the requirements of the demanding user to provide years of service.

Standard features of the KASFOLD 3000 include automatic operation and double side jogging.
There is a choice of models with either flat clench stapling or the safety staple formed in an anvil.
The KASFOLD 3000 has 4 stapling positions and the option of loop stapling.

Collator Interface

The KAS conveyor jogger interface conveys collated sheets from a desktop collator to the booklet maker and jogs before the stapling and folding sequence.

Trimmer

When making booklets a trimmer can be used with the KASFOLD. Each stapled and folded booklet is individually clamped and held flat before a single knife removes the feathered edge of the booklet.

KASFOLD 3000 Booklet Maker Features:

• Sensors detect paper being inserted into the machine and automatically start the booklet making cycle
• Variable time control between paper insertion and stapling for operator convenience.
• Easily accessible control for simple adjustment, with tools, or paper/ booklet size.
• 4 stapling positions, movable heads and a choice of clinchers or safety staple.
• Modular face trimmer and collator interface options.
• Side guides are set 15 mm wider than the paper for easier/faster insertion, both side guides move-in to jog the set before stapling.
• Drive motor shuts down if the booklet maker is not used for a period of time and restarts when paper is placed under the stapling heads.
• A sensor detects when a staple cassette is low on staples and automatically stops the machine.
• Re-settable counter.
• Integral conveyor/stacker folds away when not in use, saving valuable space.
• Free standing design and castors for easy mobility and storage.
• Sturdy construction for years of service.
