Secabo TCC LITE Cap Press
Secabo TCC LITE Cap Press
Call for Price
Call for Price
- Digital Controller
- Automatic open
- Optional base elements
-
- 7cm × 16.5cm
- 7.6cm × 14.6cm
- 10.2cm × 16.5cm
- 10.2cm × 20.3cm
-

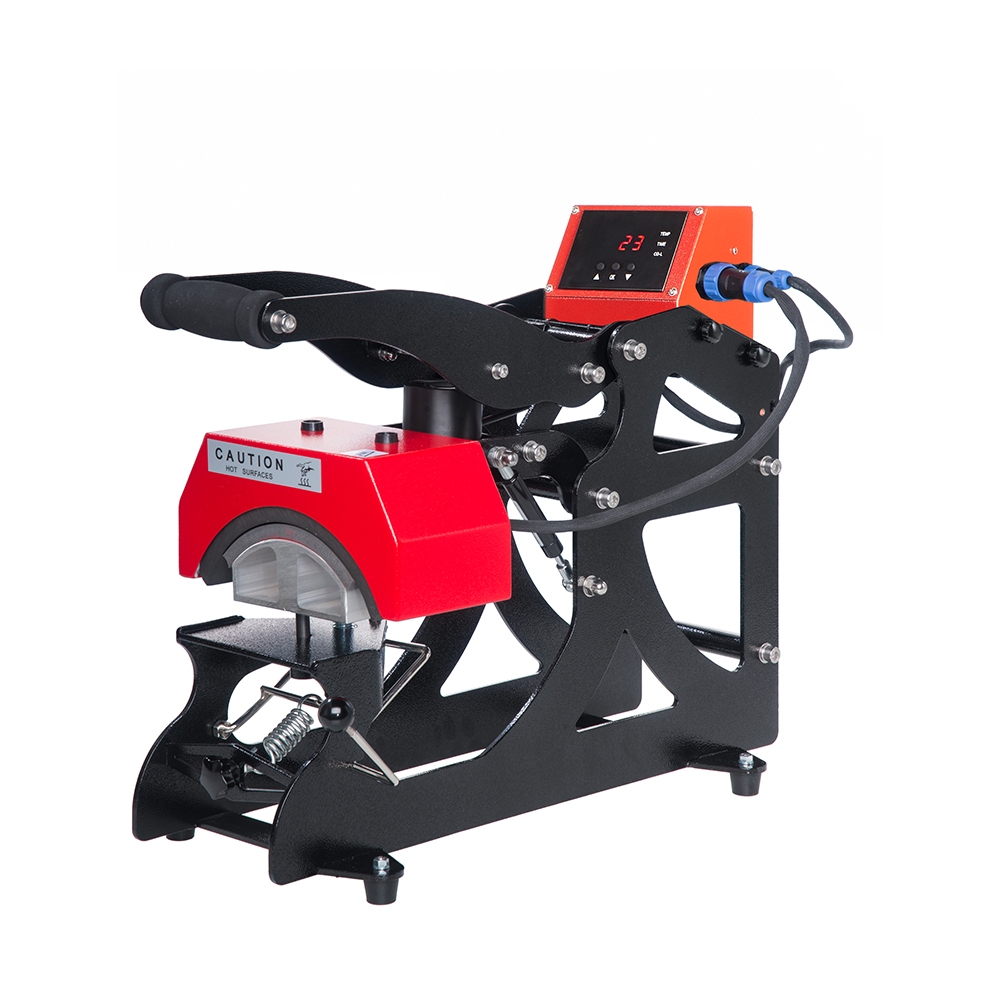

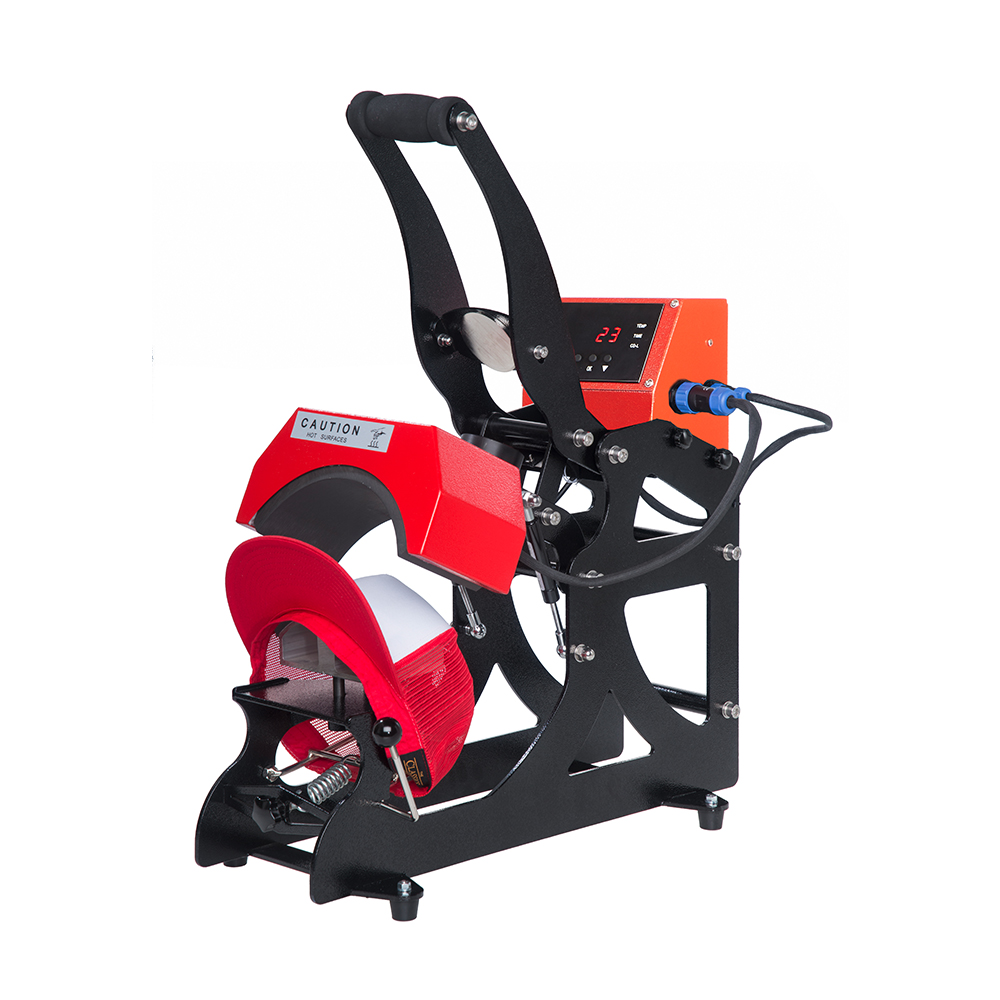

The Secabo TCC LITE cap press is designed for easy, efficient heat transfers on caps and similar items. It opens automatically with an alert when done, letting users multitask.
Temperature, time, and pressure are easily adjustable. Its wide opening and interchangeable bases make it simple to use with various cap sizes. Compatible with all common transfer types, it’s ideal for professional use.
The intelligent display functions and simple control concept in the digital controller for temperature and time allows you to make the desired settings easily and quickly.
The Secabo TCC LITE cap press has a modular design and can optionally be quickly and easily equipped with exchangeable base elements in various formats.
Optional base elements can be exchanged in just a few steps and allow ideal and gentle pressing of caps, hats and caps – depending on the size and format of the transfer objects. Available formats: 7cm × 16.5cm, 7.6cm × 14.6cm, 10.2cm × 16.5cm, 10.2cm × 20.3cm.
| working area | 15 cm x 8 cm |
| locking system | Knee lever with electromagnet and gas springs |
| folding angle | 0 ° – 35 ° |
| max temperature | 220 ° C |
| maximum time preset | 999 s |
| max. downforce | 300 g / cm² |
| power supply | 230 V / 50 Hz – 60 Hz, 1.0 kW |
| environment | +5 °C – +35 °C / 30 % – 70 % humidity |
| Dimensions (WxHxD) | Closed – 24 cm x 59 cm x 53 cm
Open – 24 cm x 71 cm x 53 cm |
| Options | Basic elements in other dimensions |
| scope of delivery | Mechanical base with heating element, basic element 14.6cm x 7.6cm, controller box, C13 power cable, tools, operating instructions |
| Weight Net/Gross | 20 kg / 24.6kg |
