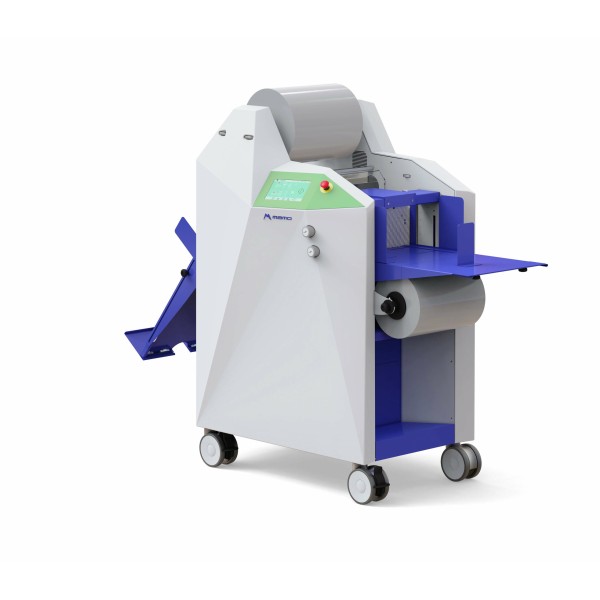

The Vela Laminator is a semi-automatic single-sided laminator with automatic overflow and separator, designed for simple and efficient operation, able to support intensive work cycles. Vela guarantees a wide range of paper sizes and supports materials up to 500 g/m2. With a production capability of up to 7 m/min, it ensures high performance. It can be equipped with the optional high stack suction feeder that allows automatic operations without operator supervision.
Working has never been so efficient!
Vela is a semi-automatic single-sided laminator with automatic overlap and bursting system, designed for simple and efficient operation, able to support intensive work cycles. Vela guarantees a wide range of paper sizes and supports materials up to 500 g/m2. With a working speed up to 7 m/min, it ensures high performance. It can be equipped with the optional high pile suction feeder that allows automatic operations without operator supervision.
Your laminator has never been so modular.
The Vela Single Sided Semi Auto Laminator a perfectly laminated sheet is always guaranteed, thanks to the mechanical pressure with electric activation that allows to start laminating by simply pressing the start button. It is equipped with hand sheet feeder with automatic overlapping and automatic bursting system, which allows a smooth lamination process for the operator. All settings can be managed in few seconds directly from the intuitive touchscreen display.
Intelligence 4.0
Vela is equipped with an intuitive graphical interface thanks to the 4.3” touchscreen display with the ability to customize all the work-related settings as needed. Among the advantages of the new software it allows to obtain constant production information and to integrate the machine from a “Industry 4.0” point of view. The innovative user interface provides a smooth user experience by guiding the operator to easily set the optimal parameters required for each process.
Technical features
Lamination | Single side |
Max paper width | 353 mm |
Max laminatin film width | 340 mm |
Paper length | 210 – 999 mm |
Paper weight | 120 – 500 g/m2 |
Pressure | Mechanic |
Sheet feeding system | Manual |
Overlap | Automatic |
Working speed | up to 7 m/min |
Sheet separation | Automatic (OPP only) |
Power supply | 230VAC – 50/60hz |
Electrical absorption | 900 W |
Dimensions (WxDxH) | 1937x 722 x1318 mm |
Weight | 150 kg |
